| Technical information
|
|||||||||

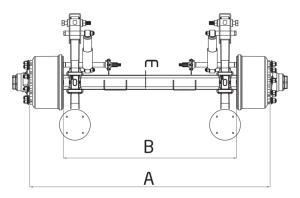

| CODE | CAPACITY | TRACK(A) | BEAM LENGHT(B) | LEAF CENTER( C) | SPACE(D) | BEAM | BEARING | BRAKE | WEIGHT |
| TR42 1010002 09 | 9 TON | 2080 | 1500 | 1300 | 1300 | 120×120 | 33213/218,248 | 420×200 | 400 KG |
| TR42 1010002 12 | 12 TON | 2080 | 1500 | 1300 | 1300 | 140×140 | 33213/218,248 | 420×200 | 430 KG |
| TR42 1010002 14 | 14 TON | 2080 | 1500 | 1300 | 1300 | 140×140 | 33215/32219 | 420×200 | 470 KG |
| TR42 1010002 16 | 16 TON | 2080 | 1500 | 1300 | 1300 | 140×140 | 32314/32222 | 420×200 | 550 KG |
